An Overdue Post on AlphaStar, Part 1
In late January, DeepMind broadcasted a demonstration of their StarCraft II agent AlphaStar. In Protoss v Protoss mirrors on a map used in pro play (Catalyst LE), it successfully beat two pro players from TeamLiquid, TLO (a Zerg player) and MaNa (a Protoss player).
This made waves in both the StarCraft and machine learning communities. I’m mostly an ML person, but I played a lot of casual Brood War growing up and used to follow the Brood War and SC2 pro scene.
As such, this is a two-part post. The first is a high-level overview of my reactions to the AlphaStar match and other people’s reactions to the match. The second part, linked here, is a more detailed discussion of what AlphaStar means for machine learning.
In other words, if you’re interested in deep dives into AlphaStar’s StarCraft strategy, you may want to read something else. I recommend this analysis video by Artosis and this VOD of MaNa’s livestream about AlphaStar.
The DeepMind blog post for AlphaStar is pretty extensive, and I’ll be assuming you’ve read that already, since I’ll be referring to sections of it throughout the post.
The Initial Impact
It was never a secret that DeepMind was working on StarCraft II. One of the first things mentioned after the AlphaGo vs Lee Sedol match was that DeepMind was planning to look at StarCraft. They’ve given talks at BlizzCon, helped develop the SC2 learning environment, and published a few papers about training agents in StarCraft II minigames. It was always a matter of time.
For this reason, it hasn’t made as big an impact on me as OpenAI’s 1v1 DotA 2 bot. The key difference isn’t how impressive the results were, it was how surprising it was to hear about them. No one knew OpenAI was looking at DotA 2, until they announced they had beaten a top player in 1v1 (with conditions). Even for AlphaGo, DeepMind published a paper on Go evaluation over a year before the AlphaGo Nature paper (Maddison et al, ICLR 2015). It was on the horizon if you saw the right signs (see my post on AlphaGo if curious).
StarCraft II has had a steady stream of progress reports, and that’s lessened the shock of the initial impact. When you know a team has been working on StarCraft for several years, and Demis Hassabis tweets that the SC2 demonstration will be worth watching…well, it’s hard not to expect something to happen.
In his post-match livestream, MaNa relayed a story about his DeepMind visit. In retrospect, given how many hints there were, it’s funny to hear how far they went to conceal how strong AlphaStar was in the days up to the event.
Me [MaNa] and TLO are going to be representing TeamLiquid, right? They wanted to make sure there wasn’t any kind of leak about the event, or what kind of show they were putting on. Around the office, we had to cover ourselves with DeepMind hoodies, because me and TLO are representing TeamLiquid, with the TeamLiquid hoodie and TeamLiquid T-shirt. We walk in day one and the project managers are like, “NOOOO, don’t do that, don’t spoil it, people will see! Here are some DeepMind hoodies, do you have a normal T-shirt?”, and me and TLO are walking in with TeamLiquid gear. We didn’t know they wanted to keep it that spoiler-free.
To be fair, the question was never about whether DeepMind had positive results. It was about how strong their results were. On that front, they successfully hid their progress, and I was surprised at how strong the agent was.
How Did AlphaStar Win?
Here is an incredibly oversimplified explanation of StarCraft II.
- Each player starts with some workers and a home base. Workers can collect resources, and the home base can spend resources to build more workers.
- Workers can spend resources to build other buildings that produce stronger units, upgrade your existing units, or provide static defenses.
- The goal is to destroy all your opponent’s buildings.
Within this is a large pool of potential strategy. For example, one thing workers can do is build new bases. This is called expanding, and it gives you more economy long run, but the earlier you expand, the more open you are to aggression.
AlphaStar’s style, so to speak, seems to trend in these directions.
- Never stop building workers, even when it delays building your first expansion.
- Build lots of Stalkers and micro them to flank and harass the enemy army until it’s weak enough to lose to an all-in engagement. Stalkers are one of the first units you can build, and can hit both ground and air units from range. They also have a Blink ability that lets them quickly jump in and out of battle.
- Support those Stalkers with a few other units.
From the minimal research I’ve done, none of these strategies are entirely new, but AlphaStar pushed the limits of these strategies to new places. Players have massed workers in the past, but they’ll often stop before hitting peak mining capacity, due to marginal returns on workers. Building workers all the way to the mining cap delays your first expansion, but it also provides redundancy against worker harass, so it’s not an unreasonable strategy.
Similarly, Stalkers have always been a core Protoss unit, but they eventually get countered by Immortals. AlphaStar seems to play around this counter by using exceptional Stalker micro to force early wins through a timing push.
It’s a bit early to tell whether humans should be copying these strategies. The heavy Stalker build may only be viable with superhuman micro (more on this later). Still, it’s exciting that it’s debatable in the first place.

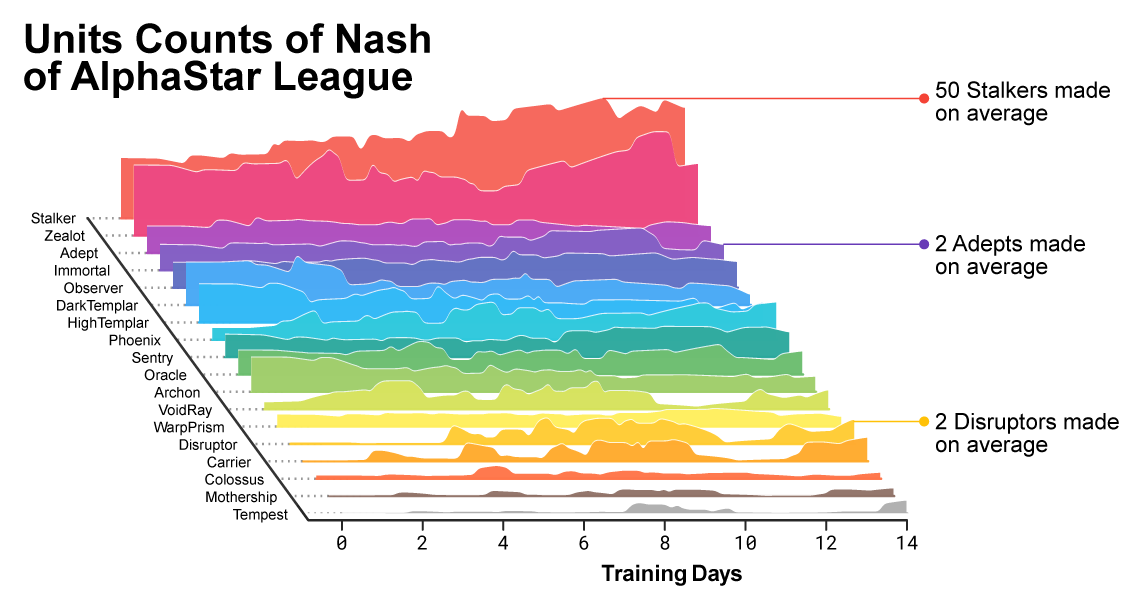

Below is a diagram from the blog post, visualizing the number of each unit the learned agents create as a function of training time. We see that Stalkers and Zealots dominate the curve. This isn’t surprising, since Stalkers and Zealots are the first attacking units you can build, and even if you’re planning to use other units, you still need some Stalkers or Zealots for defense.
I believe this is the first StarCraft II agent that learns unit compositions. The previous leading agent was one developed by Tencent (Sun et al, 2018), which followed human-designed unit compositions.
The StarCraft AI Effect
One of the running themes in machine learning is that whenever somebody gets an AI to do something new, others immediately find a reason to say it’s not a big deal. This is done either by claiming that the task solved doesn’t require intelligence, or by homing in on some inhuman aspect of how the AI works. For example, the first chess AIs won thanks to large game tree searches and lots of human-provided knowledge. So you can discount chess AIs by claiming that large tree searches don’t count as intelligence.
The same thing has happened with AlphaStar. Thanks to the wonders of livestreaming and Reddit, I was able to see this live, and boy was that a sight to behold. It reminded me of the routine “Everything is Amazing, and Nobody’s Happy”. (I understand that Louis C.K. has a lot of baggage these days, but I haven’t found another clip that expresses the right sentiment, so I’m using it anyways.)
I do think some of the criticisms are fair. The criticisms revolved around two points: the global camera, and AlphaStar’s APM.
I’m deferring details of AlphaStar’s architecture to part 2, but the short version is that AlphaStar is allowed to observe everything within vision of units it controls. By contrast, humans can only observe the minimap and the units on their screen, and must move the camera around to see other things.
There’s one match where MaNa tried building Dark Templars, and the instant they walked into AlphaStar’s range, it immediately started building Observers to counter them. A human wouldn’t be able to react to Dark Templars that quickly. This is further complicated by AlphaStar receiving raw game state instead of the visual render. Getting raw game state likely makes it easier to precisely focus-fire units without overkill, and also heavily nerfs cloak in general. The way cloaking works in StarCraft is that cloaked units are untargetable, but you can spot faint shimmers wherever there’s a cloaked unit. With proper vigilance, you can spot cloaked units, but it’s easy to miss them with everything else you need to focus on. AlphaStar doesn’t have to spot the on-screen shimmer of cloak, since the raw game state simply says “Dark Templar, cloaked, at position (x,y).”
The raw game state seems like an almost unfixable problem (unless you want to go down the computer vision rabbit hole), but it’s not that bad compared to the global camera. For what it’s worth, DeepMind trained a new agent without the global camera for the final showmatch, and I assume the global camera will not be used in any future pro matches.
The more significant controversy is around AlphaStar’s APM. On average, AlphaStar acts at 280 actions per minute, less than pro play, but this isn’t the full picture. According to the Reddit AMA, the limitation is at most 600 APM every 5 seconds, 400 APM every 15 seconds, and 300 APM every 60 seconds. This was done to model both average pro APM and burst APM, since humans can often reach high peak APM in micro-intensive situations. During the match itself, viewers spotted that AlphaStar’s burst APM sometimes reached 900 or even 1500 APM, far above what we’ve seen from any human.
These stats are backed up by the APM chart: AlphaStar’s average APM is smaller than MaNa’s, but has a longer tail.
Note that TLO’s APM numbers are inflated because the key bindings he uses leads to lots of phantom actions that don’t do anything. MaNa’s numbers are more reflective of pro human APM,
I mentioned earlier that AlphaStar really likes Stalkers. At times, it felt like AlphaStar was building Stalkers in pure defiance of common sense, and it worked anyways because it had such effective blink micro. This was most on display in game 4, where AlphaStar used Stalkers to whittle down MaNa’s Immortals, eventually destroying all of them in a game-ending victory. (Starts at 1:37:46.)
I saw a bunch of people complaining about the superhuman micro of AlphaStar, and how it wasn’t fair. And yes, it isn’t. But it’s worth noting that before AlphaStar, it was still an open question whether bots could beat pro players at all, with no restrictions on APM. What, is the defeat of a pro player in any capacity at all not cool enough? Did Stalker blink micro stop being fun to watch? Are you not entertained? Why is this such a big deal?
What’s Up With APM?
After thinking about the question, I have a few theories for why people care about APM so much.
First, StarCraft is notorious for its high APM at the professional level. This started back in Brood War, where people shared absurd demonstrations of how fast Korean pro players were with their execution.
It’s accepted wisdom that if you’re a StarCraft pro, you have to have high APM. This is to the point where many outsiders are scared by StarCraft because they think you have to have high APM to have any fun playing StarCraft at all. Without the APM to make your units do what you want them to do, you won’t have time to think about any of the strategy that makes StarCraft interesting.
This is wrong, and the best argument against it is the one Day[9] gave on the eve of the release of StarCraft: Brood War Remastered (starts at 4:30).
There is this illusion that in Brood War, you need to be excellent at your mechanics before you get to be able to do the strategy. There is this idea that if you practice for three months, you’ll have your mechanics down and then get to play the strategy portion. This is totally false. […] If you watch any pro play, stuff is going wrong all the time. They’re losing track of drop ships and missing macro back at home and they have a geyser with 1 dude in it and they forget to expand. Stuff’s going wrong all the time, because it’s hard to be a commander.
This execution difficulty is an important human element of gameplay. You can only go so fast, and can’t do everything at once, so you have to choose where to focus your efforts.
But a computer can do everything at once. I assume a lot of pros would find it unsatisfying if supreme micro was the only way computers could compete with pros at StarCraft.
Second, micro is the flashiest and most visible StarCraft skill. Any StarCraft highlight reel will have a moment where one player’s ridiculous micro lets them barely win a fight they should have lost. For many people, micro is what makes StarCraft a good competitive game, because it’s a way for the better player to leverage their skill to win. And from a spectator perspective, these micro fights are the most exciting parts of the game.
The fact that micro is so obvious matters for the third and final theory: DeepMind started by saying their agent acted within human parameters for APM, and then broke the implicit contract.
Everything DeepMind said was true. AlphaStar’s average APM is under pro average APM. They did consult with pros to decide what APM limits to use. When this is all mentioned to the viewer, it comes with a bunch of implications. Among them is the assumption that the fight will be fair, and that AlphaStar will not do things that humans can’t do. AlphaStar will play in ways that look like a very good pro.
Then, AlphaStar does something superhuman with its micro. Now, the fact that this is within APM limits that pros thought were reasonable doesn’t matter. What matters is that the implied contract was broken, and that’s where people got mad. And because micro is so obvious to the viewer, it’s very easy to see why people were mad. I claim that if AlphaStar had used thousands of APM at all times, people wouldn’t have been upset, because DeepMind never would have claimed AlphaStar’s APM was within human limits, and everyone would have accepted AlphaStar’s behavior as the way things were.
We saw a similar thing play out in the OpenAI Five showcase. The DotA team said that OpenAI Five had 250ms reaction times, within human limits. One of the humans picked Axe, aiming for Blink-Call engages. OpenAI Five would insta-Hex Axe every time they blinked into range, completely negating that strategy. We would never expect humans to do this consistently, and questions about reaction time were among the first questions asked in the Q&A section.
I feel people are missing the wider picture: we can now train ML models that can play StarCraft II at Grandmaster level. It is entirely natural to ask for more restrictions, now that we’ve seen what AlphaStar can do, but I’d ask people not to look down on what AlphaStar has already done. StarCraft II is a hard enough problem that any success should be celebrated, even if the end goal is to build an agent more human-like in its behavior.
APM does matter. Assuming all other skills are equal, the player with higher APM is going to win, because they can execute things with more speed and precision. But APM is nothing without a strategy behind it. This should be obvious if you look at existing StarCraft bots, that use thousands of APM and yet are nowhere near pro level. Turns out learning StarCraft strategy is hard!
If anything, I find it very impressive that AlphaStar is actually making good decisions with the APM it has. “Micro” involves a lot of rapid, small-scale decisions about whether to engage or disengage, based off context about what units are around, who has the better position and composition, and guesses on where the rest of your opponent’s army is. It’s hard.
For this reason, I didn’t find AlphaStar’s micro that upsetting. The understanding displayed of when to advance and when to retreat was impressive enough to me, and watching AlphaStar micro three groups of Stalkers to simultaneously do hit-and-runs on MaNa’s army was incredibly entertaining.
At the same time, I could see it getting old. When fighting micro of that caliber, it’s hard to see how MaNa has a chance.
Still, it seems like an easy fix: tighten some of the APM bounds, maybe include limitations at smaller granularity (say 1 second) to limit burst APM, and see what happens. If Stalker micro really is a crutch that prevents it from learning stronger strategies, tighter limits should force AlphaStar to learn something new. (And if AlphaStar doesn’t have to do this, then that would be good to know too.)
What’s Next?
DeepMind is free to do what they want with AlphaStar. I suspect they’ll try to address the concerns people have brought up, and won’t stop until they’ve removed any doubt over ML’s ability to beat pro StarCraft II players with reasonable conditions.
There are times where people in game communities worry that big companies are building game AIs purely as a PR stunt, and that they don’t appreciate the beauty in competitive play. I’ve found this is almost always false, and the same is true here.
Let me put it this way: one of the faces of the project is Oriol Vinyals. Based on a 35 Under 35 segment in the MIT Technology Review, Oriol used to be the best Brood War player in Spain. Then, he worked on a StarCraft AI at UC Berkeley. Eventually, he joined DeepMind and started working on AlphaStar.
So yeah, I don’t think the AlphaStar team is looking at StarCraft as just another game to conquer. I think they genuinely love the game and won’t stop until AlphaStar is both better than everyone and able to teach us something new about StarCraft II.
